Single-station mosaic machine AutoPRESS 1201
Product Introduction
1. Simple operation, one-button operation, automatic completion of the mosaic operation process from heating, heat preservation, automatic pressure compensation, cooling and unloading, making the mosaic process simple and efficient.
2. Shorter mosaic time and high sample preparation efficiency. Advanced heating technology and optimized cooling system, ultra-short sample insertion time, 30mm diameter sample about 7 minutes (301 model about 25 minutes)

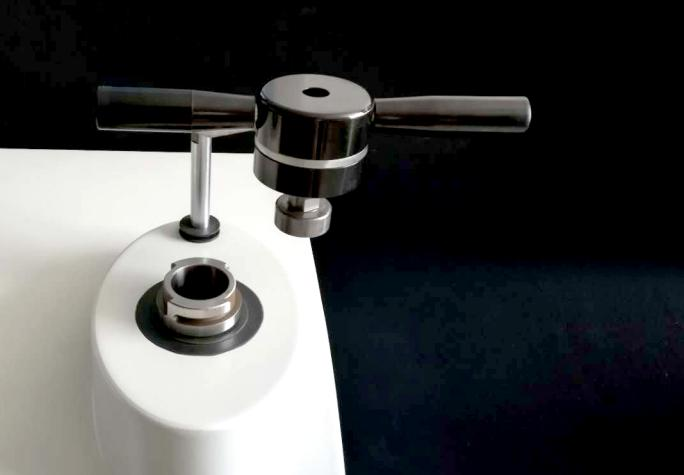

3. Optional spacer, two samples can be made at a time.
4. Three cooling modes are available: temperature, time and manual; Characteristic pulse cooling technology, controllable cooling intensity and water saving.
5. Multiple safety protection, automatic power failure due to overheating.
6. Streamlined high-temperature resistant and high-strength composite shell, never rusting.
7. Optional external circulating cooling water tank can save water and reduce cost.
Application
It is used in automobile, aerospace, electronics, manufacturing, education and scientific research industries.
Product features

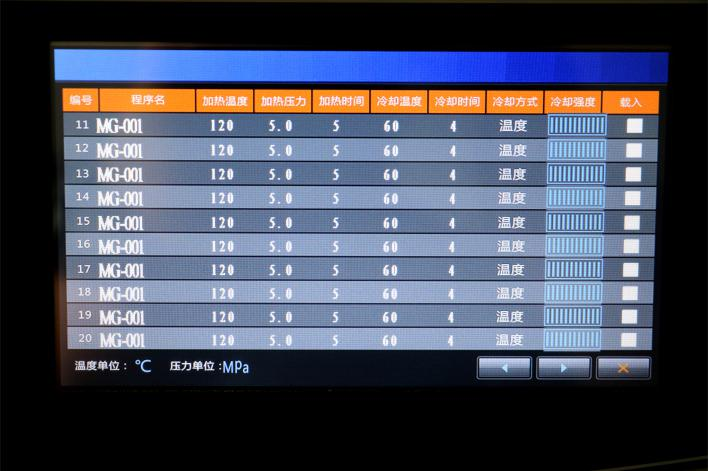

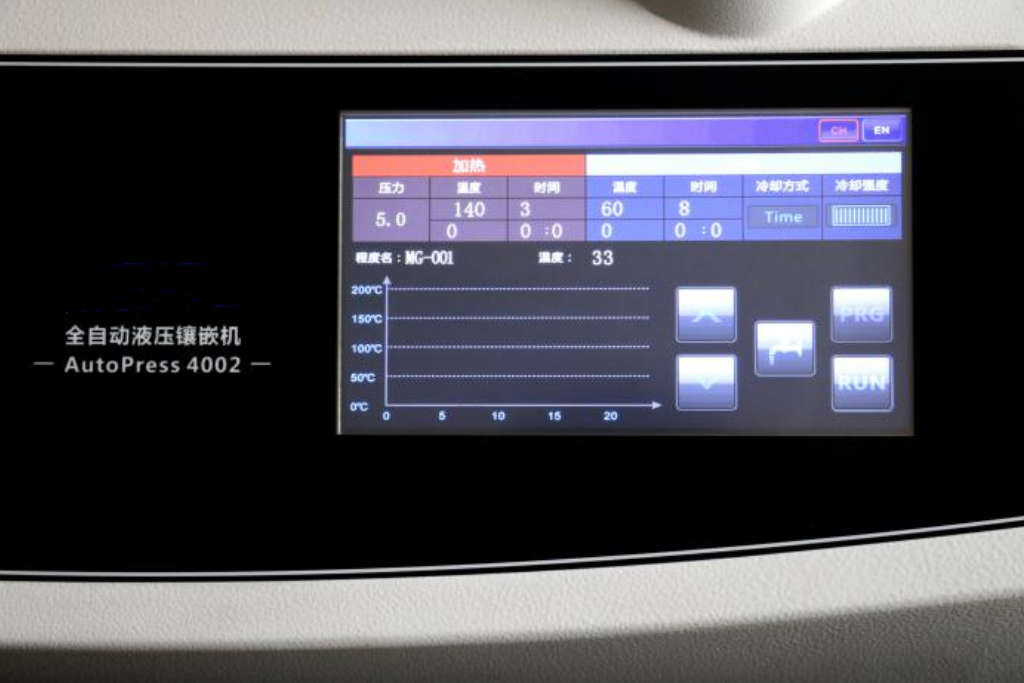

AutoPress series is a programmable automatic thermal mosaic machine. This series of products has excellent heating and cooling system, fast inlay speed, good combination of inlay and workpiece, and is not easy to fall off. The product comes standard with a 7-inch color touch screen, which is user-friendly and easy to operate. Widely used in automobile, aerospace, electronics, manufacturing, education and scientific research industries.
Description
| AutoPRESS 301
| AutoPRESS 501
| AutoPRESS 1201
| AutoPRESS 4001
|
|---|
| Operation | Automatic |
| Pressure | Air | Air | Hydraulic | Hydraulic |
| Cooling | Automatic/manual |
| Mold | ○25 ●30 ○40 ○50mm, others can be customized |
| Max Force（kgs） | 300 | 500 | 1200 | 4000 |
| Max Tem（℃） | 180 | 180 | 200 | 200 |
| Heater | 600W | 1.2KW | 1.2KW | 1.5KW |
| Dimension(WxDxH) | 400x400x420 | 400x400x420 | 350x400x420 | 410x480x430 |
| Weight | 25Kg | 25Kg | 30Kg | 48Kg |
| Power | 220V50Hz |
| Air source | Need | Need |
|
|
| Cooling Water | Need |
| Mold Release | ○ | ○ | ○ | ○ |
| Black Resin | ● | ● | ● | ● |
| Green Resin | ○ | ○ | ○ | ○ |
| Red Resin | ○ | ○ | ○ | ○ |
| Conductive Resin | ○ | ○ | ○ | ○ |
| Edge-protection Resin | ○ | ○ | ○ | ○ |
| Transparent Resin | ○ | ○ | ○ | ○ |
| Air filter | ● | ● |
|
|
| Funnel&Spoon | ● | ● | ● | ● |
| Drains | ● | ● | ● | ● |
●standard ○option
